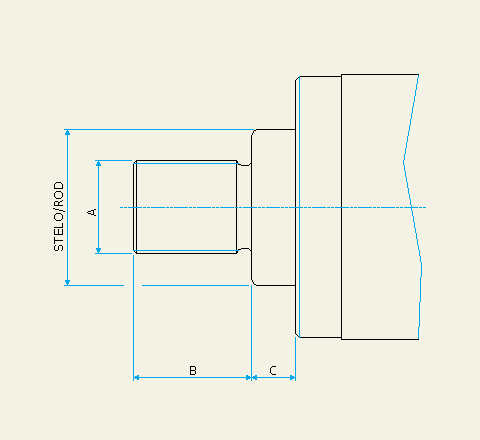

| DIMENSIONI: | ||||
| ALESAGGIO Ø | STELO Ø | A | B | C |
| 40 | 20-25 | M 16 x 1,5 | 20 | 9 |
| 50 | 25-30 | 10 | ||
| 60 | 30-40 | M 22 x 1,5 | 30 | 13 |
| 70 | 40-50 | |||
| 80 | 40-50-60 | M 30 x 2 | 38 | 14 |
| 90 | 40-50-60 | 15 | ||
| 100 | 50-60-70 | M 42 x 2 | 50 | 15 |
| 110 | 60-70-80 | |||
| 120 | 70-80-90 | 18 | ||
| 140 | 80-90-100 | M 56 x 2 | 60 | 20 |
| 160 | 100-110-120 | |||
