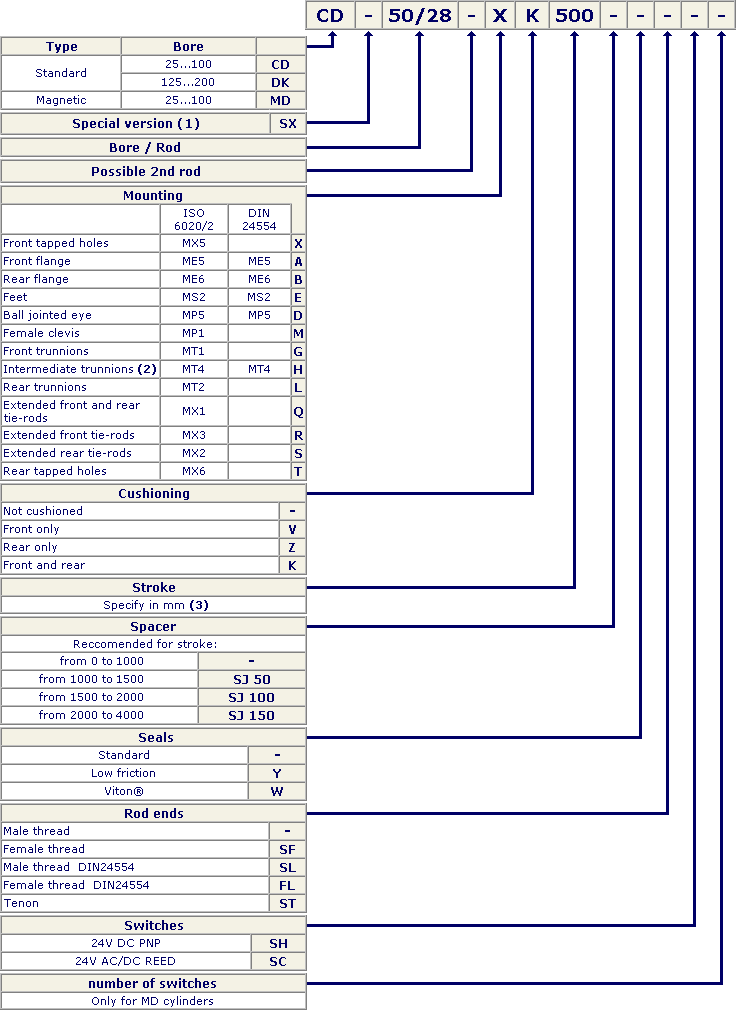

| (1) Specify SX only if different from the standard (It is usually linked to a drawing number). |
| |
Special version:
- Oil port position
- Oversized oil ports
- Special rod end, lengthed rod
- Bushing drain
- Air bleeders
- Lengthed cushioning
- Rod treatment (NIKROM, AISI, ecc.)
- Rod protective cover
- Intermediate tie-rods supports
- CETOP subplates
- Non-standard mounting
|
| |
| (2) For mounting H (MT4) - Value dimension 'XV'. |
| |
| (3) Maximum stroke - CD (DK) = 4000 mm; MD = 1500 mm. | |
